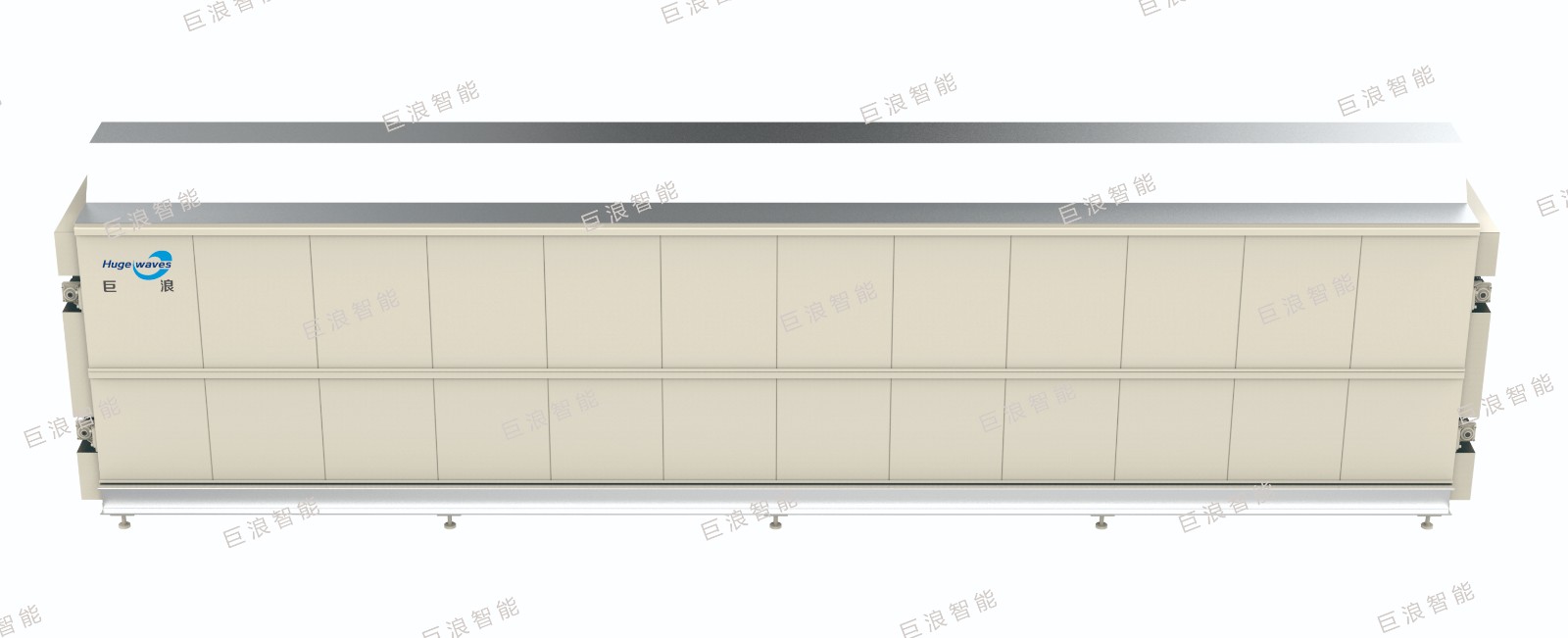

固定式雙層遠紅外線隧道烘箱是指有兩層獨立通道的遠紅外線烘箱，每層爐盤固定，每層網鏈獨立旋轉傳輸被加熱物料，具有節能、效率高、升溫快、應用范圍廣的顯著特點。
The fixed double-layer far infrared tunnel oven refers to the far infrared oven which has two independent channels, each of which are fixed by the furnace plate and each layer of net chain has independent and rotary transmission of the heated materials; it is superior in terms of energy conservation, efficiency, temperature rise and application scope.
固定式雙層遠紅外線隧道烘箱是指有兩層獨立通道的遠紅外線烘箱，每層爐盤固定，每層網鏈獨立旋轉傳輸被加熱物料，具有節能、效率高、升溫快、應用范圍廣的顯著特點。
The fixed double-layer far infrared tunnel oven refers to the far infrared oven which has two independent channels, each of which are fixed by the furnace plate and each layer of net chain has independent and rotary transmission of the heated materials; it is superior in terms of energy conservation, efficiency, temperature rise and application scope.
選配：1.桁架上料機械手；2.壓機上下料機器人；3.伸縮送料機構；4.升降機構
Optional: 1. Truss feeding manipulator; 2. Material cutting robot on press; 3. Telescopic feeding mechanism; 4. Lifting mechanism
*可根據客戶的需求定制
*Able to be customized
*參數及圖片可能變化，具體以技術協議為準
*Parameters and photos may vary. The technical agreement prevails.
序號 S/N | 型號Model | 加熱區數量Number of heating zones | 最高設定溫度℃ Max. Temperature ℃ | 最大加熱材料（L*W） Max. Heated Material (L*W) | 網鏈速度 mm/s Net Chain Speed mm/s | 溫度均勻度 Temperature uniformity | 溫度波動度 Temperature fluctuation |
1 | HW-IO-DF21720AA | 2 | 400 | 1700*2000 | 1-800 | ±3% | ±1℃ |
2 | HW-IO-DF41720AA | 4 | 400 | 1-800 | ±3% | ±1℃ | |
3 | HW-IO-DF61720AA | 6 | 400 | 1-800 | ±3% | ±1℃ | |
4 | HW-IO-DF21827AA | 2 | 400 | 1800*2700 | 1-800 | ±3% | ±1℃ |
5 | HW-IO-DF41827AA | 4 | 400 | 1-800 | ±3% | ±1℃ | |
6 | HW-IO-DF61827AA | 6 | 400 | 1-800 | ±3% | ±1℃ |
